设计模式系列:中介者模式

发表于 | 分类于 ， | |

概念

定义一个中介者对象, 封装一系列对象的交互关系, 使得各对象不必显示的相互引用,
从而使其耦合松散, 而且可以独立的改变它们的交互.

实现

以智能家居为例，小爱控制只能家居。

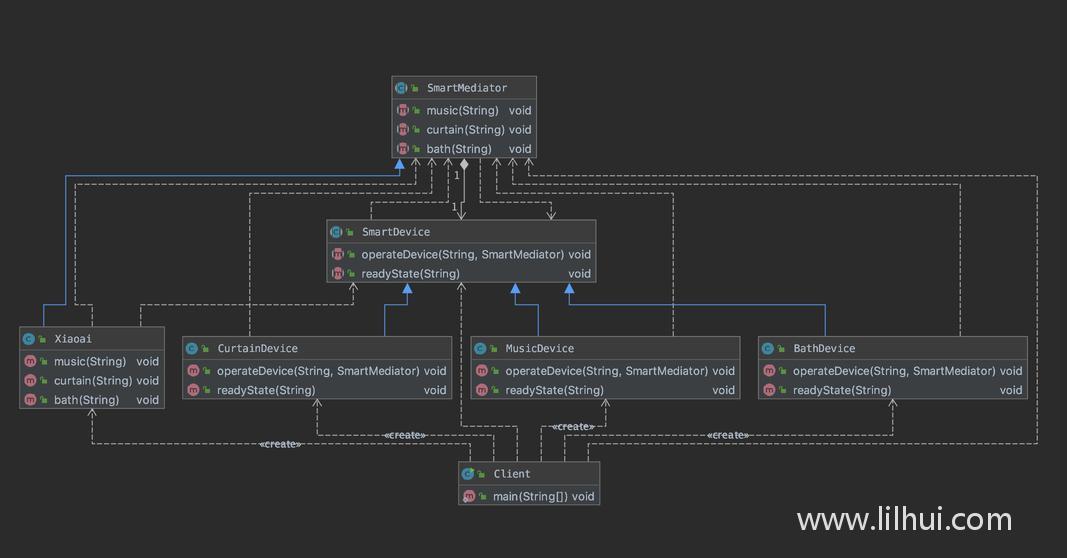

类图


代码

  • SmartDevice 智能设备抽象
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
package com.littlehui.design.mediator;

/**
 * @Description TODO
 * @ClassName SmartDevice
 * @Author littlehui
 * @Date 2020/4/9 18:12
 * @Version 1.0
 **/
public abstract class SmartDevice {

    public abstract void operateDevice(String instruction, SmartMediator mediator);

    public abstract void readyState(String instruction);

}
  • SmartMediator 中介者
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
package com.littlehui.design.mediator;

/**
 * @Description TODO
 * @ClassName SmartMediator
 * @Author littlehui
 * @Date 2020/4/9 18:12
 * @Version 1.0
 **/
public abstract class SmartMediator {
    SmartDevice bd;
    SmartDevice md;
    SmartDevice cd;
    public SmartMediator(SmartDevice bd, SmartDevice md, SmartDevice cd) {
        super();
        this.bd = bd;
        this.md = md;
        this.cd = cd;
    }

    public abstract void music(String instruction);
    public abstract void curtain(String instruction);
    public abstract void bath(String instruction);
}

  • MusicDevice 智能播放器

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    package com.littlehui.design.mediator;

    /**
     * @Description TODO
     * @ClassName MusicDevice
     * @Author littlehui
     * @Date 2020/4/9 18:15
     * @Version 1.0
     **/
    public class MusicDevice extends SmartDevice {

        @Override
        public void operateDevice(String instruction,SmartMediator mediator) {
            System.out.println("音乐设备"+instruction);
            mediator.music(instruction);
        }

        @Override
        public void readyState(String instruction) {
            System.out.println("音乐设备准备"+instruction);
        }
    }

  • CurtainDevice 智能窗帘

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package com.littlehui.design.mediator;

/**
 * @Description TODO
 * @ClassName CurtainDevice
 * @Author littlehui
 * @Date 2020/4/9 18:14
 * @Version 1.0
 **/
public class CurtainDevice extends SmartDevice {

    @Override
    public void operateDevice(String instruction, SmartMediator mediator) {
        System.out.println("窗帘已"+instruction);
        mediator.curtain(instruction);
    }

    @Override
    public void readyState(String instruction) {
        System.out.println("窗帘设备准备"+instruction);
    }
}
  • BathDevice 洗浴室
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
package com.littlehui.design.mediator;

/**
 * @Description TODO
 * @ClassName BathDevice
 * @Author littlehui
 * @Date 2020/4/9 18:16
 * @Version 1.0
 **/
public class BathDevice extends SmartDevice {


    @Override
    public void operateDevice(String instruction, SmartMediator mediator) {
        System.out.println("洗浴设备"+instruction);
        mediator.bath(instruction);
    }

    @Override
    public void readyState(String instruction) {
        System.out.println("洗浴设备正在准备"+instruction);
    }

}
  • Xiaoai 具体中介者 小爱
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
package com.littlehui.design.mediator;

/**
 * @Description TODO
 * @ClassName Xiaoai
 * @Author littlehui
 * @Date 2020/4/9 18:13
 * @Version 1.0
 **/
public class Xiaoai extends SmartMediator {

    public Xiaoai(SmartDevice bd, SmartDevice md, SmartDevice cd) {
        super(bd, md, cd);
    }

    @Override
    public void music(String instruction) {
        System.out.println("小爱操作音乐音乐");
        cd.readyState(instruction);
        bd.readyState(instruction);
    }

    @Override
    public void curtain(String instruction) {
        System.out.println("小爱操作窗帘");
        md.readyState(instruction);
        bd.readyState(instruction);
    }

    @Override
    public void bath(String instruction) {
        System.out.println("小爱操作浴室");
        cd.readyState(instruction);
        md.readyState(instruction);
    }
}
  • Client 客户端
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package com.littlehui.design.mediator;

/**
 * @Description TODO
 * @ClassName Client
 * @Author littlehui
 * @Date 2020/4/9 18:18
 * @Version 1.0
 **/
public class Client {

    public static void main(String[] args) {
        SmartDevice bd = new BathDevice();
        SmartDevice cd = new CurtainDevice();
        SmartDevice md = new MusicDevice();
        SmartMediator sm = new Xiaoai(bd, cd, md);
        cd.operateDevice("open",sm);
        md.operateDevice("close",sm);
    }
}
  • 执行结果
1
2
3
4
5
6
7
8
9
10
Connected to the target VM, address: '127.0.0.1:60536', transport: 'socket'
窗帘已open
小爱操作窗帘
窗帘设备准备open
洗浴设备正在准备open
音乐设备已close
小爱操作音乐音乐
音乐设备准备close
洗浴设备正在准备close
Disconnected from the target VM, address: '127.0.0.1:60536', transport: 'socket'

场景

当有多个对象彼此间相互交互的时候，自然就会想到对象间的耦合度过高，解决办法就是封装对象间的交互行为，因此就能想到中介者模式就是干这行的。

总结

中介者的核心是抽离依赖关系。通过依赖关系来描述整个业务场景。使得复杂的逻辑可以内聚。

  • 中介者模式优点
    1. 通过让对象彼此解耦，增加对象的复用性
    2. 通过将控制逻辑集中，可以简化系统维护
      通过中介者使一对所变成了一堆一，便于理解
  • 缺点
    1. 如果设计不好，引入中介者会使程序变的复杂
    2. 中介者承担过多责任，维护不好会出大事
